261W

Beam

Movement

  • Horizontal scan:540°(16bit precision scan) Electronic error correction

  • Vertical scan:270°(16bit precision scan) Electronic error correction

  • Pan/Tilt moving speed adjustable.

  • Pan/Tilt position lock for transporting protection.

Electrical & Weight

  • AC90-240V,50-60Hz

  • Power consumption 400W

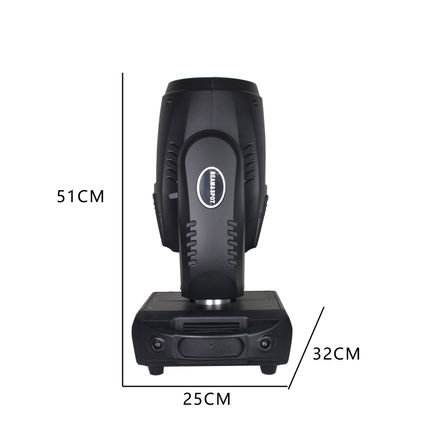

  • Fixture size: 51*25*32cm

  • Net weight:13.25kg

Source

  • Lamp: Philips 260W

  • 2000 hours average lamp life.

Effects

  • Dual Bladed Dimming.

  • Random strobing, variable strobing,

  • Strobe effect : 1 – 10 times / second

  • Motorized Focus

  • Frost

Photo-metric Data

  • 100000 LUX @ 20m.

  • Color Temperature 8500K

Gobo / Prism

  • Gobo wheel: 13gobos+white, pattern jitter and pattern arbitrary positioning function.

  • Prism: 8+16facet prism and 16 facet prism, can be rotated in both directions, and has magnetic function. Prisms can be superimposed.

Color

  • Color wheel: 13colors+white, two-way rotation, rainbow effect.

Control / Connections

  • LCD screen display menu.

  • 16 DMX Channel Modes.

  • Master-slave/Sound active/Auto

  • PowerCON in/out

  • 3 Pin XLR connection in/out
