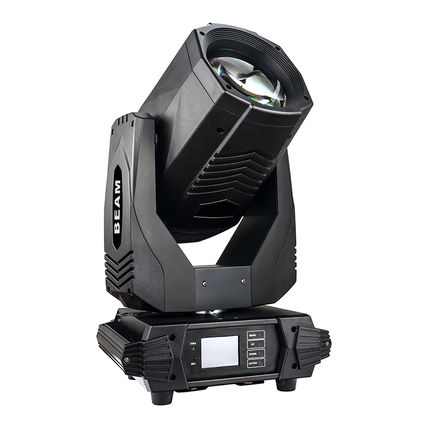

280W

6Prism

Beam

Moving

Light

Movement

  • Horizontal scan:540°(16bit precision scan) Electronic error correction

  • Vertical scan:270°(16bit precision scan) Electronic error correction

  • Pan/Tilt moving speed adjustable.

  • Pan/Tilt position lock for transporting protection.

Electrical & Weight

  • AC90-260V,50-60Hz

  • Power consumption 400W

Source

  • Lamp: YODN MSD 280W

  • 2000 hours average lamp life.

Effects

  • Dual Bladed Dimming.

  • Random strobing, variable strobing,

  • Strobe effect : 1 – 20 times / second

  • Motorized Focus

  • Frost

  • Effect Wheel : Waterwave, Rainbow wheel.

Photo-metric Data

  • 100000 LUX @ 10m.

  • Color Temperature 8500K

Gobo / Prism

  • Gobo wheel: 14 steel gobos+Open, 3 glass gobo.

  • Prism Wheel: Prism 1: 6 facet prism; Prism 2: 8 facet+16 facet +24 facet, can be rotated in both directions. Prisms can be superimposed.

Color

  • Color wheel: 14colors+Open,

  • Rainbow Wheel

Control / Connections

  • LCD screen display menu.

  • 18 DMX Channel Modes.

  • Master-slave/Sound active/Auto

  • PowerCON in/out

  • 3 Pin XLR connection in/out
