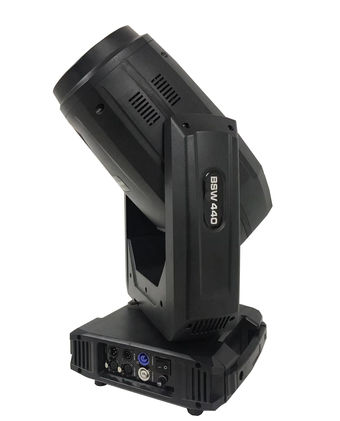

440 BSW CMY
Source
-
YODN MSD 440W R20 Bulb
-
1500 hours average lamp life.
Effects
-
0% – 100% Linear Dimming.
-
Random strobing, variable strobing.
-
Strobe : 1 – 13 fps with pulse effect.
-
Motorized Focus.
-
Zoom range: 2° - 50°
-
Frost Effect.
Photo-metric Data
-
Color Temperature: 7800K
Gobo / Prism
-
3 X Gobo Wheels.
-
1 Static Gobo with 18 gobo + open with rotation and running water effect.
-
1 X Rotation gobo with 7 gobo + open.
-
1 X Animation Wheel.
-
8 Facet prism with bi-direction rotation.
-
16 Facet prism with bi-direction rotation.
Color
-
3 X Color wheel with 5 colors +white
-
Rainbow color wheel can rotate in both directions to create a rainbow effect.
-
CMY color mixing achieving unlimited color combinations.
Control / Connections
-
LCD display menu.
-
22/25 DMX Channel Modes.
-
Master-slave/Sound active/Auto.
-
4 button control panel.
-
PowerCON in/out.
-
3 Pin XLR connection in/out
Movement
-
Pan: 540 degree + micro adjustment.
-
Tilt: 270 degree + micro adjustment.
-
Pan/Tilt moving speed adjustable.
-
Automatic Pan/Tilt correction.
-
Easy calibration and maintenance by magnetic home positioning.
-
Pan/Tilt position lock for transporting protection.
Electrical
-
Voltage: 100-240V, 50 ~ 60Hz
-
600W Power consumption
Size / Weight
-
Fixture size: 667× 335×393mm
-
Net Weight : 23 KG
